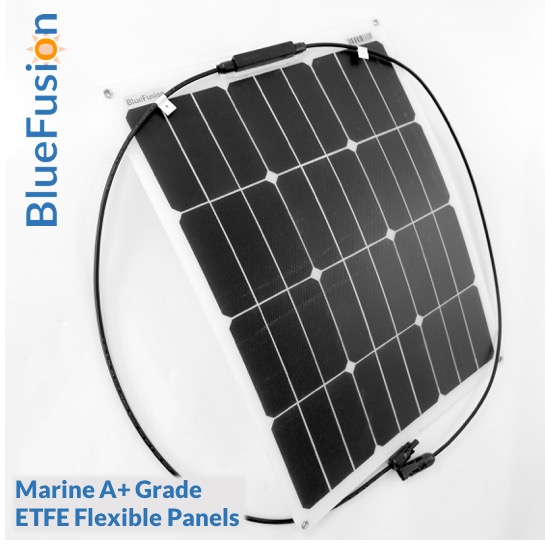

BlueFusion Flexible Marine Grade A Solar Panels 20W, 40W, 65W

Description Flexible Lightweight Solar Panel Range 20W – 65W SunPower Grade A Cells Manufactured from High Efficiency Monocrystalline cells. Built for Marine Environments Tough ETFE coating provides high resistance to saltwater environments and longer lifespan. Anti-slip indented surface coating can withstand stepping on with soft deck shoes. Excellent low light capabilities, with inbuilt diodes to prevent hot spots from partial shading. Off-grid applications on Boats, Yacht, Marine Buoys, Camper vans, Electric Golf Buggy, Residential and off-grid, and street solar lighting applications. Premium Mono Panels Monocrystalline cells with high conversion efficiency up to 24.4%. Uniform ergonomic appearance of monocrystalline cells. Higher light transmittance of 93%. 82% lighter than other solar modules. 3mm thin panels, with low profile junction box in front. Waterproof IP68 Easy Installation Can be fixed on curved surfaces up to 30 degrees. Use a bonding agent, or screw down using pre-drilled holes. Specifications Solar Panel Specification: Cells: Monocrystalline silicon solar cell manufactured by SunPower Model: MD1193 (20W) MD1194 (40W) MD1195 (65W) Panel dimension: 470*285*3mm 570*425*3mm 640*540*3mm Junction Box (front of panel): Bypass Diode included. 0.9m cables with connector compatible with MC4 connectors. Peak power (Pmax): 20W 40W 65W Voltage at Pmax (Vmp) (V): 22.3 22.3 22.3 Current at Pmax (Imp) (A): 0.90 1.80 2.92 Open circuit voltage (Voc) (V): 26.2 26.2 26.2 Short circuit current (Isc) (A): 0.95 1.90 3.09 The maximum system voltage: 200V DC (IEC) 200V DC (IEC) 200V DC (IEC) Output Power Tolerance: ±3% ±3% ±3% Operating Temperature(°C): -40 to 85 -40 to 85 -40 to 85 Weight(kg): 0.58 1.05 1.52 Certification: CE, RoHS, ISO Note: Specification subject to change, manufacturing tolerance and product improvement. Tested under standard testing conditions (STC): 1000W/m², 1.5 Air Mass Download PDF Datasheets for 20W,    40W    ,    65W Warranty 1 Year product warranty Service life 20 Year Caution. Do not exceed stated curvature ratio on panel to prevent damage. The panels have an indented anti-slip surface and can withstand accidental stepping on using soft deck shoes if installed on an underlying rigid deck structure. They are not designed to withstand full weight of a person. Solar panels produce electricity and can lead to electrical shock and injury. All electrical installation should be carried out by a competent person to comply with UK building regulations.
