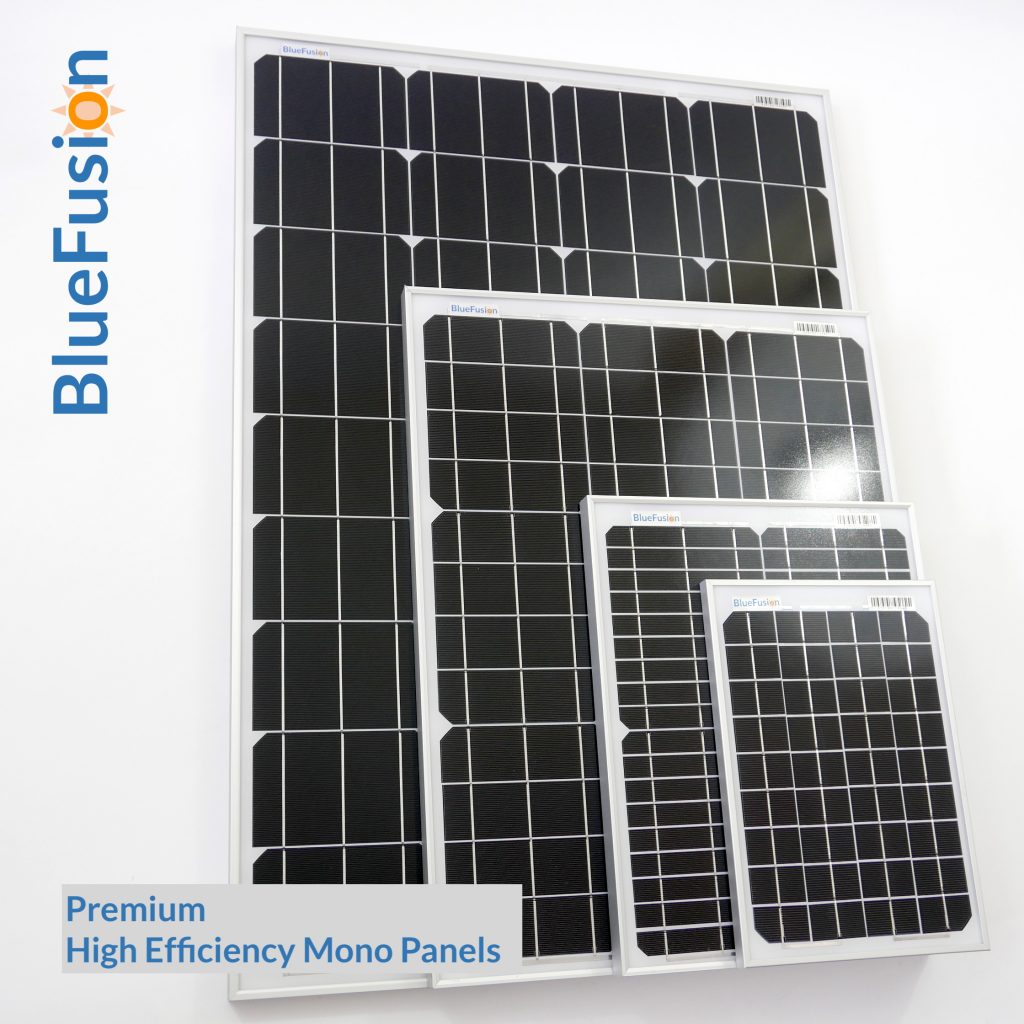

BlueFusion Mono Solar Panel 10W, 20W, 50W, 100W

Description     Mono Solar Panel Range 10W – 100W Manufactured from High Efficiency Monocrystalline cells by SolarWorld GmbH, Germany. Premium Mono Panels High conversion efficiency up to 19.58 %. Long lifespan capable of withstanding salt, mist, ammonia and blowing sand, typical of marine, farm and desert environments. Excellent low light capabilities. Junction box rated to IP67 for weather endurance. Uniform ergonomic appearance of monocrystalline cells, in a matching aluminium frame. 3.2mm high transmission, low iron, tempered glass. Grid-tie & Off-Grid Applications Suitable for all grid-tie and off-grid solar installations. Residential and off-site, street solar lighting applications. Off-grid applications for Caravans roofs, Yachts and Residential use. Electrical Characteristics   Electrical Specification: Panel Model: MD1189 MD1190 MD1191 MD1192 Peak power (Pmax): 10W 20W 50W 100W Voltage at Pmax (Vmp) (V): 17.8 17.8 17.8 17.8 Current at Pmax (Imp) (A): 0.56 1.12 2.81 5.62 Open circuit voltage (Voc) (V): 21.3 21.3 21.3 21.3 Short circuit current (Isc) (A): 0.61 1.21 3.03 6.07 The maximum system voltage: 600V DC (IEC) 600V DC (IEC) 600V DC (IEC) 1000V DC (IEC) Output power Tolerance: ±3% ±3% ±3% ±3% Power Temperature Coefficient: -0.39%/°C -0.39%/°C -0.39%/°C -0.39%/°C Voltage Temperature Coefficient: -0.29%/°C -0.29%/°C -0.29%/°C -0.29%/°C Current Temperature Coefficient: 0.05%/°C 0.05%/°C 0.05%/°C 0.05%/°C Operating Temperature(°C): -40 to 85 -40 to 85 -40 to 85 -40 to 85 Tested under standard testing conditions (STC): 1000W/m², 1.5 Air Mass Panel Specification   Specification: Cells: Monocrystalline silicon solar cell manufactured by SolarWorld GmbH Panel dimension: 345*240*18mm 430*345*25mm 650*505*35mm 945*670*30mm Junction Box: Back of Panel Back of Panel Back of Panel Back of Panel Included Cable: No cables No cables  0.9m cable and MC4 connectors 0.9m cable and MC4 connectors Bypass Diode: None None In junction box In junction box Weight(kg): .94 1.64 3.54 6.97 Certification: CE, RoHS, ISO Note: Specification subject to change, manufacturing tolerance and product improvement Linear Power Warranty* 5 Year, 95% power output warranty 10 Year, 90% power output warranty 25 Year, 80% power output warranty 1 Year limited product warranty Precaution: Solar panels produce electricity and can lead to electrical shock and injury. All electrical installation should be carried out by a competent person to comply with UK building regulations.
